MQ Whiteman

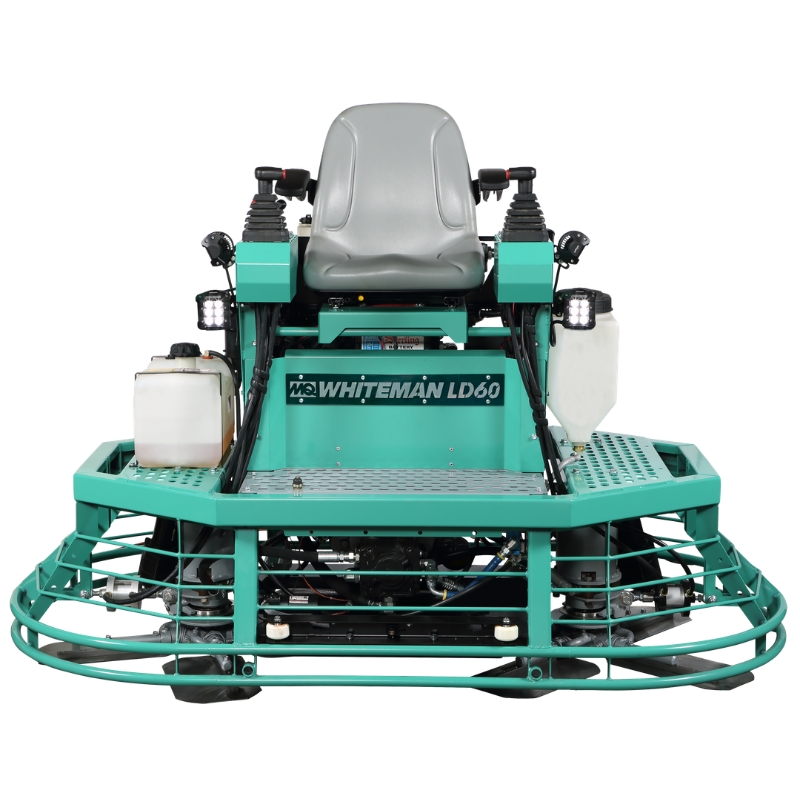

Ride-On Power Trowel LD60

36” - Hydrostatic – Vanguard 23 hp Petrol

The MQ Whiteman LD60 is a 6‑foot ride‑on power trowel engineered for precision finishing and exceptional manoeuvrability. Compact in size yet robust in performance, it features a high‑torque hydrostatic drive system with a proportional servo‑controlled pump to deliver smooth, consistent operation. Designed for contractors who require accuracy in tighter spaces, the LD60 offers effortless handling, reduced operator fatigue, and reliable performance across all finishing stages. With maintenance‑friendly access points and durability built into every component, the LD60 provides the flexibility and efficiency needed for projects where high‑quality concrete surfaces are essential.

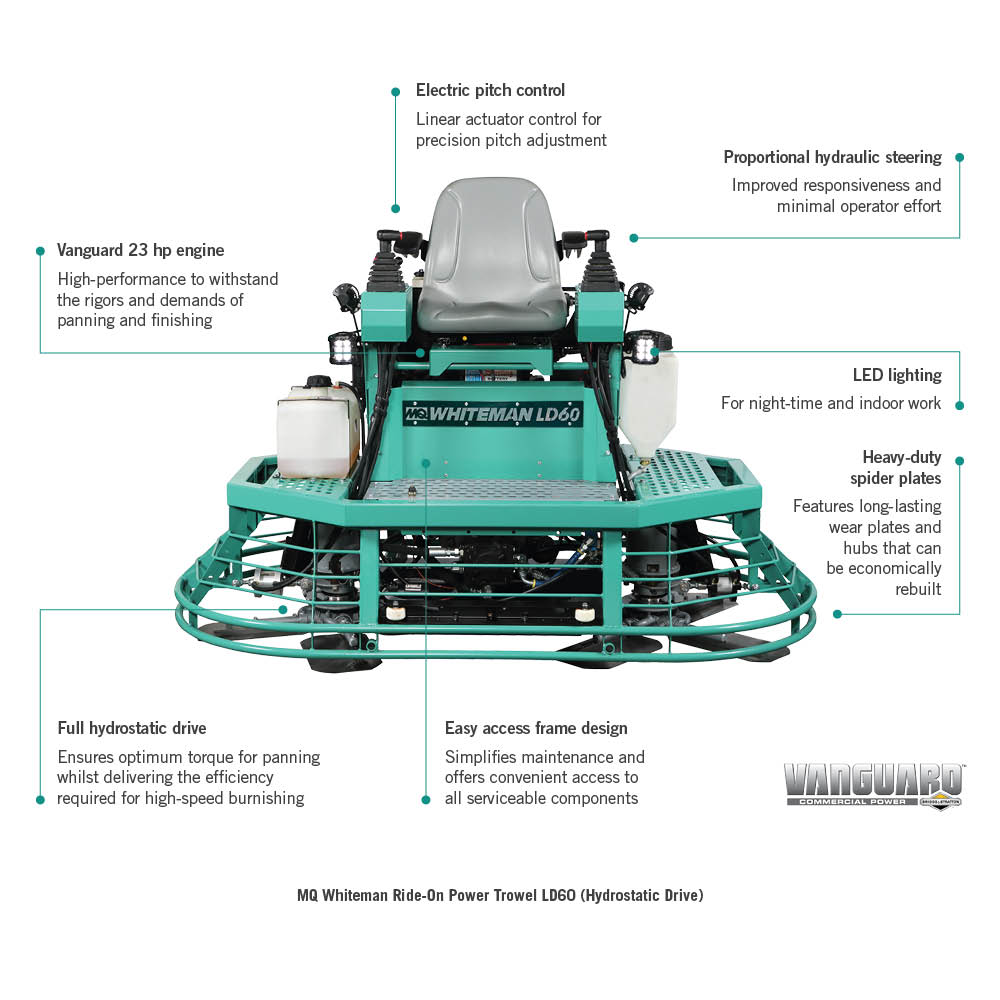

Electric pitch control allows linear actuator control for precision pitch adjustment
Proportional hydraulic steering for improved responsiveness and minimal operator effort
Vanguard 23 hp engine to withstand the rigors and demands of panning and finishing
LED lighting for night‑time and indoor work
Full hydrostatic drive ensures optimum torque for panning whilst delivering the efficiency required for high‑speed burnishing
Easy access frame design simplifies maintenance and offers convenient access to all serviceable components
Heavy‑duty spider plates for long‑lasting wear plates and hubs that can be economically rebuilt
This product is covered by the Flextool Promise - click here to learn more
Flextool is the exclusive distributor for all MQ Whiteman concrete power finishing equipment in Australia

Technical Information (download)

Data Sheet - MQ Whiteman Ride-On Power Trowel LD60

		Operating Instructions - MQ Whiteman Ride-On Power Trowel LD60 (Coming Soon)
		Risk Assessment - MQ Whiteman Ride-On Power Trowel

Spare Parts Manual - B&S Vanguard 61G2770029J1

Spare Parts Manual - MQ Whiteman Ride-On Power Trowel LD60 (Coming Soon)

Find a Stockist


LD60	MD80	MD82	MD105	HTX6H	STX6H

Model	Trowel Rotor Diameter mm (in)	Path Width mm (in)	Operating Weight kg	Blades Per Rotor	Steering Type	Speed Range rpm	Blade Pitch Max deg	Fuel Tank Capacity L	Wheel Kit Option	Engine Make	Engine Model	Max Rated Power hp	Fuel Type	Product code
LD60^	915 (36)	1905 (75)	386	4	Proportional Hydraulic	0-140	30	15	EMR2 or EMR3	B&S Vanguard	3864	23		FT269067-UNIT
MD80	1168 (46)	2310 (91)	690	6	Proportional Hydraulic	0-160	30	30	EMR3	Vanguard	61G200	40		FT269065-UNIT
MD82	1168 (46)	2310 (91)	809	6	Proportional Hydraulic	0-180	30	34	EMR3	Kubota	WG1605	57	/ LPG	FT269069-UNIT
MD105	1525 (60)	2970 (117)	835	6	Proportional Hydraulic	0-140	30	76	EMR3	Honda	iGX800	2 x 25*		FT269066-UNIT
HTX6H	1168 (46)	2335 (92)	1020	6	Proportional Hydraulic	0-160	30	37.85	EMR3	Hatz	4H50TIC	70		FT269016-UNIT
STX6H	1525 (60)	2970 (117)	1135	6	Proportional Hydraulic	0-130	30	75.75	EMR3	Hatz	4H50TIC	70		FT269017-UNIT

^ The LD60 builds on the proven LD6 platform with electrical system enhancements, including a redesigned controller and simplified wiring configuration.
These updates improve reliability and durability and create a simpler and more robust system while retaining the same performance, handling, and operator experience.

*MD105 - Dual Engine power trowel

WHEEL KIT OPTIONS

Model	Product Description	Product Code
EMR2	Ride-on power trowel wheel transport kit EMR2	FT269018-UNIT
EMR3	Ride-on power trowel wheel transport kit EMR3	FT269019-UNIT


EMR2	EMR3

TROWEL BLADES AND PAN FLOATS

Model	Combination Blade	Finishing Blade	Reversible Combination Wide Finishing Blade	Pan Float - Flat	Pan Float - Super Flat
LD60	FT269023-UNIT	FT269027-UNIT	FT269024-UNIT	FT269032-UNIT	FT269033-UNIT
MD80	N/A	N/A	FT269058-UNIT	N/A	FT269037-UNIT
MD82	N/A	N/A	FT269058-UNIT	N/A	FT269037-UNIT
MD105	FT269054-UNIT	FT269056-UNIT	FT269055-UNIT	N/A	FT269038-UNIT
HTX6H	N/A	N/A	FT269058-UNIT	N/A	FT269037-UNIT
STX6H	FT269054-UNIT	FT269056-UNIT	FT269055-UNIT	N/A	FT269038-UNIT

For further information and specifications please refer to the MQ Whiteman Trowel Blades and Pan Floats Technical Data Sheet.

WHICH RIDER SUITS YOUR NEEDS BEST?


Feature	JWN24 Mechanical Operating Weight: 355 kg Rotor rpm: 40-180	HHNG5 Mechanical Operating Weight: 490 kg Rotor rpm: 0-180	LD60 Hydrostatic Operating Weight: 386 kg Rotor rpm: 0-140	MD80 Hydrostatic Operating Weight: 690 kg Rotor rpm: 0-160	MD82 Hydrostatic Operating Weight: 809 kg Rotor rpm: 0-180	MD105 Hydrostatic Operating Weight: 835 kg Rotor rpm: 0-140	HTX6H Hydrostatic Operating Weight: 1020 kg Rotor rpm: 0-160	STX6H Hydrostatic Operating Weight: 1135 kg Rotor rpm: 0-130
Manoeuvrability	••	••	•••	•••	•••	•••	•••	•••
Panning – Early Entry	•	•	•••	•••	••	•••	•	•
Panning – Tight/Black	•	•	••	••	•••	••	•••	•••
Blades –Combination	•••	•••	•••	•••	•••	••	•••	••
Blades – Finish/Burn	•••	•••	•	••	•••	••	•••	••
Serviceability	••	••	•••	•••	•••	•••	•	•

Key to understanding the comparison:

• (1 dot): Good – Suitable for basic performance and standard jobsite applications.
•• (2 dots): Great – Designed for medium-duty applications with increased performance and productivity.
••• (3 dots): Best – Built for heavy-duty application where maximum performance and durability are critical.

MQ Whiteman products are only available through authorised dealers in Australia. Click here to find your nearest authorised dealer.


LD60	MD80	MD82	MD105	HTX6H	STX6H

Model	Trowel Rotor Diameter mm (in)	Path Width mm (in)	Operating Weight kg	Blades Per Rotor	Steering Type	Speed Range rpm	Blade Pitch Max deg	Fuel Tank Capacity L	Wheel Kit Option	Engine Make	Engine Model	Max Rated Power hp	Fuel Type	Product code
LD60^	915 (36)	1905 (75)	386	4	Proportional Hydraulic	0-140	30	15	EMR2 or EMR3	B&S Vanguard	3864	23		FT269067-UNIT
MD80	1168 (46)	2310 (91)	690	6	Proportional Hydraulic	0-160	30	30	EMR3	Vanguard	61G200	40		FT269065-UNIT
MD82	1168 (46)	2310 (91)	809	6	Proportional Hydraulic	0-180	30	34	EMR3	Kubota	WG1605	57	/ LPG	FT269069-UNIT
MD105	1525 (60)	2970 (117)	835	6	Proportional Hydraulic	0-140	30	76	EMR3	Honda	iGX800	2 x 25*		FT269066-UNIT
HTX6H	1168 (46)	2335 (92)	1020	6	Proportional Hydraulic	0-160	30	37.85	EMR3	Hatz	4H50TIC	70		FT269016-UNIT
STX6H	1525 (60)	2970 (117)	1135	6	Proportional Hydraulic	0-130	30	75.75	EMR3	Hatz	4H50TIC	70		FT269017-UNIT
